JMP Impellerpumpen

JMP Marine (JMP Corp) Bronze Seewasserpumpen wurden speziell für Motorkühlanwendungen entwickelt und hergestellt. JMP Corp ist seit mehr als 40 Jahren auf die Herstellung von Hochleistungs-Seewasserpumpen, Schiffsmotorkühlpumpen und Ersatzteilen spezialisiert.

Die Produktlinie umfasst Ersatzteile für Caterpillar, Cummins, Detroit Diesel, John Deere, Kohler, Mitsubishi, Nortern-Light, Perkins, Scania, Volvo Penta, Westerbeke, Yanmar und viele andere Hersteller.

Produktmerkmale:

Hochleistungs-Guß - Starker Bronzekörper
Marine-Qualität-Welle (3X-Serie nicht magnetisch)
Langlebige Gleitringdichtung
Einfacher Austausch
Langlebigere Hochleistungsimpeller
Hohe Durchflusskapazität
Entwickelt für einfachen Austausch von Ersatzteilen
O-Ring-Dichtungen an den Endabdeckungen sorgen für eine bessere Abdichtung

Mobirise






















JMP Impellerpumpen werden aus hoch qualitativen Materialien gefertigt.

Die Impeller mit langer Lebensdauer werden mit hoch qualitativer Mechanik, Dichtungen

und Lager zusammengesetzt.

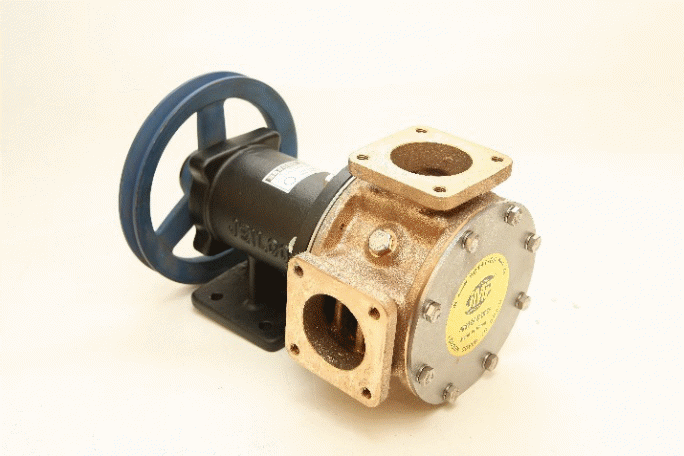

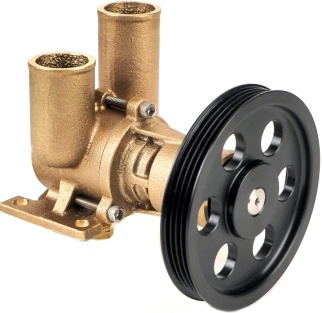

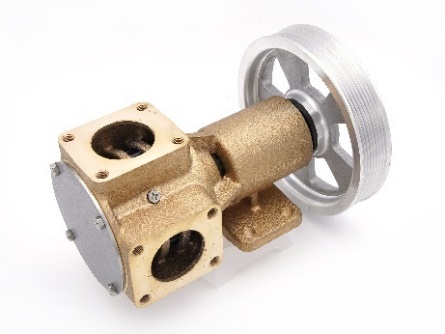

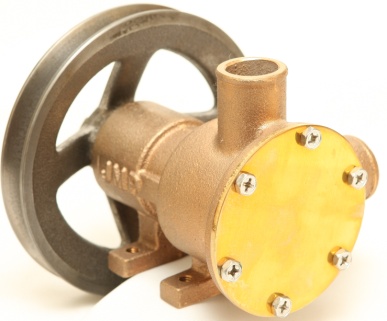

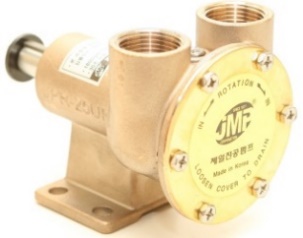

Mehrzweck-Impellerpumpen mit Riemenscheibenantrieb, Halterung und mechanischer Dichtung

JPR-25UP

JPR-32LP

JPR-32UF

JPR-40LP

JPR-40UF

Anschluss

Anschlusstyp

Wellen durchmesser

impeller

Durchfluss bei 1,800 U/min.

JMP Art.- Nr.

Preis   €

1"

BSP (internal)

∅ 17 mm.

7400-01

106 ltr./min

JPR - 25UP

€ 255

1.25"

BSP (internal)

∅ 18 mm.

7502-01

158 ltr./min

JPR - 32LP

€ 352

1.25"

Flanged with elbow kit

∅ 18 mm.

7502-01

158 ltr./min

JPR - 32UF*

€ 396

1.5"

BSP (internal)

∅ 22 mm.

8001-01

268 ltr./min

JPR - 40LP

€ 491

1.5"

Flanged with elbow kit

∅ 22 mm.

8001-01

268 ltr./min

JPR - 40UF*

€ 539

1.5"

Flanged

∅ 25 mm.

8101-01

268 ltr./min

JPR - VK2000

€ 780

2"

BSP (internal)

∅ 22 mm.

8200-01

394 ltr./min

JPR - 50LP

€ 706

2"

BSP (internal)

∅ 22 mm.

8400-01

448 ltr./min

JPR - 50LPL

€ 776

2"

Flanged

∅ 22 mm.

8200-01

394 ltr./min

JPR - 50UF*

€ 919

2"

BSP (internal)

∅ 25 mm.

8301-01

394 ltr./min

JPR - VK3000

€ 899

2.5"

Flanged

∅ 30 mm.

9100-01

591 ltr./min

JPR - 65LF*

€ 1.379

* Adapter-Kits mit flansch und Schläuchanschlüsse sind auf Anfrage verfügbar

JPR-VK2000

JPR-50LP

JPR-50UF

JPR-65LF

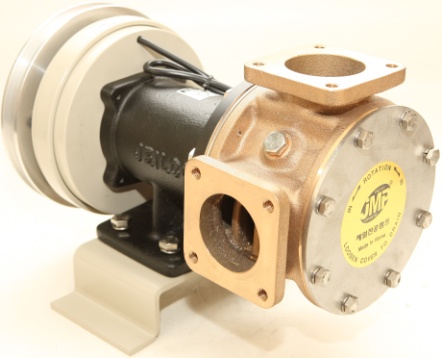

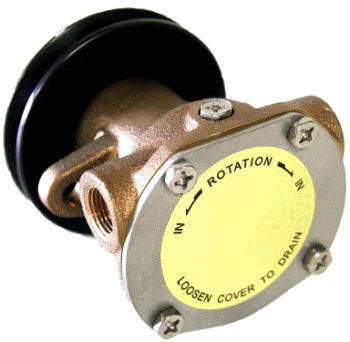

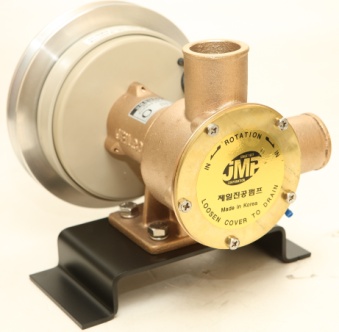

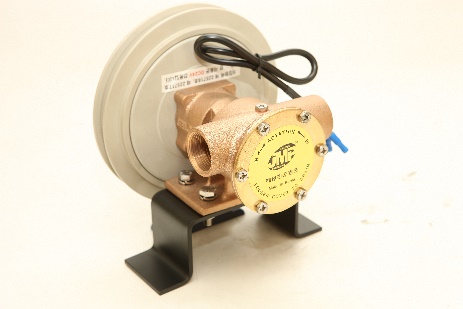

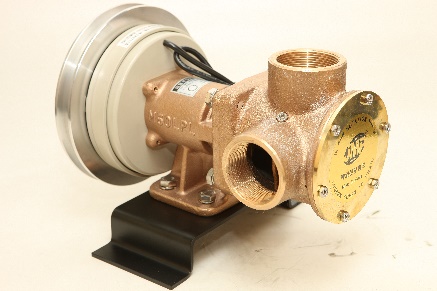

Pumpen mit elektromagnetischer Kupplung,

Halterung und mechanischen Dichtungen

Anschluss

Anschlusstyp

impeller

Durchfluss bei 1,800 U/min.

Spannung (DC)

JMP Art.-Nr.

Preis   €

1"

BSP (internal)

7400-01

106 ltr./min

12 / 24 VDC

JPR - M25IP2A12 / JPR - M25IP2A24

€ 615

1"

BSP (internal)

7400-01

106 ltr./min

12 / 24 VDC

JPR - M25IP1B12 / JPR - M25IP1B24

€ 590

1.5"

BSP (internal)

8001-01

268 ltr./min

12 VDC

JPR - M40IP2B

€ 983

2"

BSP (internal)

8400-01

448 ltr./min

12 / 24 VDC

JPR - M50LPL12 / JPR - M50LPL24

€ 1.345

2.5"

Flange

9100-01

591 ltr./min

24 VDC

JPR - M65LF

€ 1.859

Anschluss

Bemerkung

Ersatzpumpe für Johnson Art.-Nr.

JMP Art.- Nr.

1.5" NPT

NPT (internal)

8100-01

Ohne Riemenscheibe

10-13022 Serien und F8B-5001

JPR - M40IP

€ 628

2" NPT

NPT (internal)

8301-01

Ohne Riemenscheibe

10-13027 Serien und F9B-F5600

JPR - M50IP

€ 793

JPR-M25IP

JPR-M40LH

JPR-M50LPL

JPR-M60LF

JPR-M40IP JPR-M50IP



JMP Impellerpumpen nach Motorenhersteller

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis €

Caterpillar

3054, 3056

4255411

JPR - CT3054

€ 806

Caterpillar

C4,4

4255412

JPR - CT0440

€ 806

Caterpillar

3116, 3126, C7, C9

4P-7168, 7E-3268, 170-6116

JPR - S7632

€ 749

Caterpillar

3304, 3304B, 3306, 3306B, D330C, D333C

5N9357

JPR - CT3306

€ 1.028

Caterpillar

3176, 3406, 3406B, 3406C

112-6177, 1W8584, 3N4851, 3N4852

JPR - CT3406

€ 1.702

Caterpillar

D343, D353C, D353D, D353E

3N1888

JPR - CT3530

€ 2.152

Caterpillar

3408, 3408B, 3408C

3N7714, 3N8214

JPR - CT3408

Teile lieferbar

JPR-CT3054

JPR-S7632

JPR-CT3306

JPR-CT3530

JPR-CT3406

Caterpillar

3408, 3408B, 3408C, 3412, 3412C, 3412D

3N8561, 7C3613, 7C8382

JPR - CT3412

€ 4.400

Caterpillar

D336, D343, D353C, D353D, D353E

4L5788

JPR - CT3430

Auf Anfr

Caterpillar

3408, 3408B, 3412, 3412C, 3412D, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3516B,

5N7491, 7C3614

JPR - CT3508

€ 4.844

Caterpillar

C12

3596661

JPR - CT1200R

Teile lieferbar

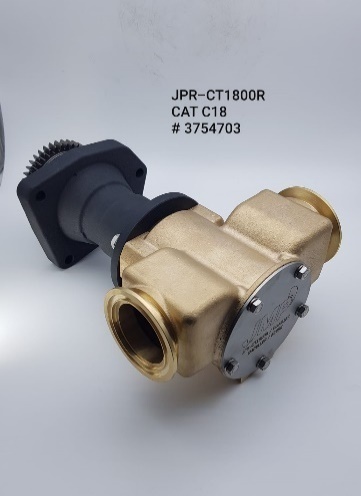

Caterpillar

C18

1318272, 1968895, 3754703

JPR - CT1800R

€ 2.289

Caterpillar

C32

3228594

JPR - CT3200R

Teile lieferbar

JPR-CT3508

JPR-CT3412

JPR-CT1800R

JPR-CM08IH

JPR-CM10LH

Craftsman Marine

CM2.16, CM3.27, CM4.42

AA.200.90020, AA.300.90030, AA.400.90040

JPR - CM08IH (1,2,3)

€ 204

Craftsman Marine

CM4.65, CM4.80

AA.480.90020

JPR - CM10LH

€ 255

Cummins

4B3.9M, 4B3.9-D(M), 4BT3.9M, 4BT3.9-D9(M), 4BTA3.9M, 6B5.9M,6B5.9-D(M), 6BT5.9M, 6BT5.9-D(M)

3907458, 3912019

JPR - C1025

€ 509

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis €

Cummins

6C, QSB 5.9, QSB 6.9

3922589, 4948142, 5268375

JPR - S7608

€ 749

Cummins

6BTA5.9M2, 6BTA5.9M(JWAC), 6BTA5.9M3, 6CT8.3-D(M), 6CTA8.3M2(SWAC), 6CTA8.3-D(M), 6CTA8.3-M1(JWAC)

3866493, 3897691, 3964765

JPR - S7630

€ 704

Cummins

6CTA 8.3M (JWAC), 6CTA8.3M2

3897194, 3964767

JPR - S7627

€ 749

JPR-C1025

JPR-S7608

JPR-S7630

JPR-C0700

Cummins

N855M, NT855M,NT855-D(M), NTA855M

3010336, 3278137

JPR - C1040

€ 749

Cummins

VT903M

3010336, 217308

JPR - C1050

P .a. A.

Cummins

QSB 7.0

2886308

JPR - C0700

€ 1.064

Cummins

QSC 8.3, QSL 9.0

3967246

JPR - C0830

€ 1.064

Cummins

QSM11

3349392, 5260393, 4929178

JPR - C1100

€ 1.445

Cummins

KT19M, KTA19M, KTA19M3/M6,KTA19-D(M), KTA19-D(M1), QSK19

3866609

JPR - C1905

€ 3.042

JPR-C1040

JPR-C1050

JPR-C1100

JPR-C1905

JPR-C1900 & JPR-C3800

Cummins

KT19M, KTA19M, KTA19M3/M6,KTA19-D(M), KTA19-D(M1), QSK19

3049158, 3074540

JPR - C1900

€ 4.399

Cummins

KT38M, KTA38M, KTA50M

3049157, 3085649, 3897669

JPR - C3800

€ 4.399

Cummins

K38, KTA38, K50, KTA50

4314820, 3393018

JPR - C3800V

Teile lieferbar

Daedong

JPR - FU40

€ 494

Daedong

DD6AC

JPR - FU50

€ 749

JMP Impellerpumpen, Impeller und Ersatzteile in hoher Qualität

JMP Impellerpumpen

JPR-G6010F

JPR-G6000

JPR-G6100

JPR-G6200

Motor Hersteller

Motortyp

Original-Pumpe

Art.-Nr.

JMP-Pumpe Nr.

Preis €

Detroit Diesel

253, 353, 453, 471

5145576(17030), 5145577 (7260), 5145578 (17050)

JPR - G6000F

€ 584

Detroit Diesel

271

5197221

JPR - G6010F

€ 654

Detroit Diesel

6V53, 6V71, 8V53

23501083, 23507971, 5107480, 5115396, 5186250

JPR - G6100

€ 809

Detroit Diesel

6V71TI, 8V71, 12V71

23501769, 23507972, 5106016, 5122599, 8924265

JPR - G6200

€ 854

Detroit Diesel

8V92TA, 16V92TA

23507475/6/7, 23507973, 8923363

JPR - G6300

€ 1,949

Detroit Diesel

12V71TI, 12V92TA, 16V-149TA

18780, 8927296, 23525078

JPR - G6400

€ 3.448

Detroit Diesel

Series 60

23522735, 23535200

JPR - G6500

€ 2.623

JPR-G6300

JPR-G6400

JPR-JD50LH

JPR-G6500 Doosan

JPR-D2500

DongA

6125

JPR - JD50LH

Auf Anfr

DongA

6125

JPR - JD50KF

Auf Anfr

DongA

6135

JPR - JD60IF

€ 1.350

Doosan

L034, L034TIH, L034TIM, DB33

65.06800-7004

JPR - D2500

€ 458

Doosan

4V158TI, 4V222TI

JPR - D2505

Auf Anfr

Doosan

MD084, DB33, AD034, DB58TI, L066TI

60.06800-7058

JPR - D3200

€ 593

Doosan

MD176, D2156HM, D2156MT, MD186T, D2366T

60.06800-7059

JPR - D4000

€ 630

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis €

Doosan

MD136, MK150, MK190, MK230, L136

65.06800-7060C

JPR - D4005

Auf Anfr

Doosan

L136T, L136TI, L086TI

65.06800-7005C

JPR - D4010

Auf Anfr

Doosan

L126TIH, L196TIM, MD196T, MD196TI

65.06800-7006B

JPR - D5005

Auf Anfr

JPR-D2502

JPR-D4005

JPR-D5005

JPR-D5010

JPR-D6515

Doosan

MK260, MK300 (old 196T)

60.06800-7062

JPR - D5000

€ 864

Doosan

4L126

JPR - D5010

Auf Anfr

Doosan

V158TIH, V158TIM, V158TIL, V180TI, V222TIH, V222TIM, V222TIL

65.06800-7063

JPR - D6500

€ 1.659

Doosan

4V158TI, 4V158TIM, 4V222TIH, 4V222TIM

65.06800-7007

JPR - D6505

€ 2.853

Doosan

V158TI, V180TI, V222TI

JPR - D6510

Auf Anfr

Doosan

4V158TI, 4V222TI

JPR - D6515

Auf Anfr

Doosan

4V158TIL, 4V222TIL

400924-00001

JPR - D6505A

Auf Anfr

JPR-HME25

JPR-HME30

JPR-HME40

JPR-HME50

JPR-HDS200

Hyundai

M4D series

JPR - HME25

€ 562

Hyundai

M6D16 series

JPR - HME32

Auf Anfr

Hyundai

H6D2TA

JPR - FU40

€ 494

Hyundai

M6D30 series

JPR - HME40A

Auf Anfr

Hyundai

H6D7TA

JPR - FU50

€ 749

Hyundai

M6D33, M6D35

JPR - HME50

Auf Anfr



JMP Impellerpumpen

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis €

Hyundai Seasall

Seasall U125

00400-1U101

JPR - HDS125

€ 709

Hyundai Seasall

Seasall D170, D150

JPR - HDS170

€ 709

Hyundai Seasall

Seasall R-series

JPR - HDS200

€ 468

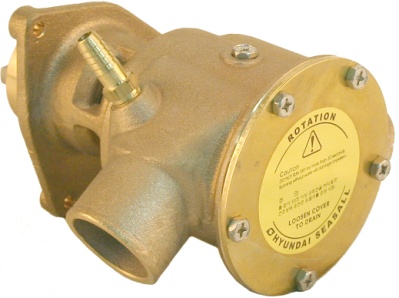

Hyundai Seasall

Seasall S250, S220

00102-5S101

JPR - HDS250

€ 387

Hyundai Seasall

Seasall H380

00400-4H160

JPR - HDS400

€ 1.516

Hyundai Seasall

Seasall L500

00400-6L160

JPR - HDS500

€ 1.598

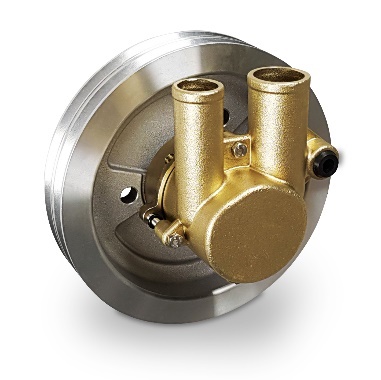

Indmar

Crank driven pump

JPR - CP25UH

€ 216

JPR-HDS250

JPR-HDS500

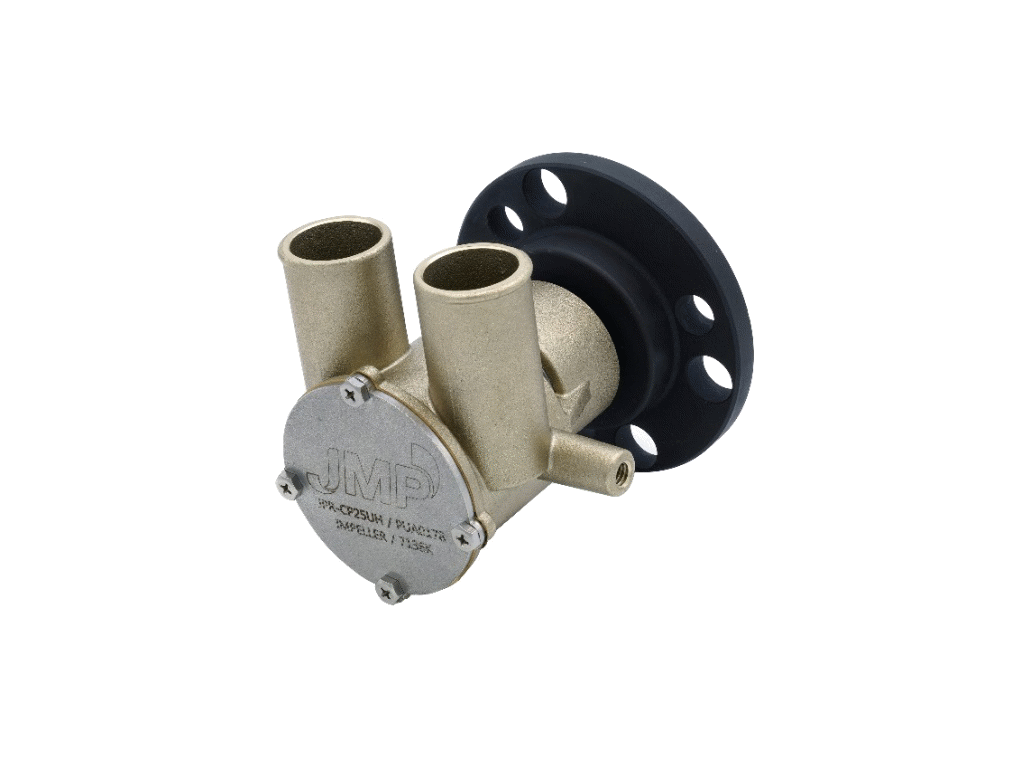

JPR-CP25UH

JPR-JD25UH

JPR-S7619

John Deere

4039DFM01, 4045TFM01, 6068DFM01, 6068TFM01, 4045TFM75, 4045DFM70, 6068TFM75/TFM76, 6068SFM50, 6068TFM50, 4045DFM50, 4045TFM50

RE47016, RE503068, RE525263, RE535944

JPR - JD25UH

€ 496

John Deere

6067AFM, 6067AFM30, 6125AFM01, 6081AFM01, 6081AFM75, 6081AFH75, 6081HFH70, 6068SFM50, 6068TFM50

RE45458, RE45459, RE515657, RE517226

JPR - S7619

€ 839

JohnDeere

6068SFM50

RE515657

JPR - S7633

€ 838

John Deere

6125A, 6125H

JPR - JD50LF

€ 944

John Deere

6125AFM75, 6125SFM75, 6135SFM75, 6135AFM75

RE530689, RE536016, RE524510, RE530872

JPR - JD60IF

€ 1.350

JPR-S7633

JPR-JD50LF

JPR-JD60IF

JPR-KL10IP

Kohler

Petrol 4 - 6.5 kW

344371, GM46936

JPR - KL10IP

€ 269

Kohler

Petrol 8 - 12.5 kW / 4 and 6 cyl. Ford

246489, 344089, 267373

JPR - KL10IP2

€ 269

Kohler

Kohler – John Deere

JPR - S7619

€ 839

Lugger

L844D

NL-25-12057

JPR - NL10IP

€ 413

Lugger

L944D

NL-25-11202

JPR - NL20IP

€ 530

Lugger

L1064D, L1066D

NL-25-19522

JPR - JD25UH

€ 496

Marine Power

Crank driven pump

JPR - CP25UH

€ 216

JPR-KL10IP2

JPR-NL10IP

JPR-NL20IP

JPR-MD65LF

Mitsubishi

S4S, S6S (adaptor kit is sold separately)

JPR - MG20IP

587

Mitsubishi

S6A, S6B, S6R, S6R2

37553-18102, 37553-28100, 37555-101N0

JPR - MD65LF

€ 1.589

Mitsubishi

S6A, S6B, S6R, S6R2 pump only for keel cooling

JPR - ME5000

from € 1.348

MTU

SERIES 60

23525078, 23522735

JPR - G6500

€ 2.623

Die JPR-ME5000 JPR-ME5000 Pumpen sind auch mit JPR-G6500 Halterung und Riemenscheibe für Motoren mit Kielkühlung erhältlich.


JMP Impellerpumpen

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe

Nr.

Preis €

Northern Lights

M643, M643K, M643M, NL643, M673, M673D, M673L, M673L2, M673L3, M673LD2, M673LD3, NL673, NL673L, NL673L2, NL673L3

NL-25-12007

JPR - NL08IH

€ 317

Northern Lights

M16C, M20CL, M20CR,M20CR2, M20CRW2, M753K, M753W, M753W2, NL753K, NL753W, NL753W2, M773LW2, M773LW3, NL773LW3, M843JK, M843NK, M843NW2, M843NW3, NL843JK, NL843NK, NL843NW2, NL843NW3, M844K, M844LK, M844K2, M844LK2, M844LW2, M844W2, NL844K, NL844LK, NL844K2, NL844LK2, NL844LW2, NL844W2, M854-20N

NL-25-12057

JPR - NL10IP

€ 413

Northern Lights

M864K, M864W, M864W3, M964, M984K, M984W

NL-25-15405

JPR - NL10IP02

€ 413

Northern Lights

M30CW, M38CR2, M944T, M944W, NL944D2, NL944T

NL-25-11202

JPR - NL20IP

€ 530

Northern Lights

M1064A, M1064D, M1064H, M1064T, MP40C2, MP55C2, MP65C2, NL1064

NL-25-19522, NL-25-19501

JPR - JD25UH

€ 496

OSCO Motors

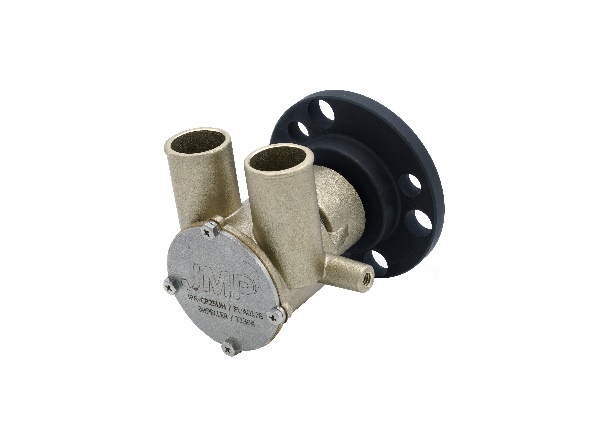

Crank driven pump

JPR - CP25UH

€ 216

PCM

PleasureCraft Marine, crank driven pump

JPR - CP25UH

€ 216

JPR-NL10IP

JPR-NL10IP02

JPR-NL20IP

JPR-CP25UH

JPR-PK10IH

Perkins

Perama M20

14501730

JPR - PK10IH

€ 304

Perkins

Perama M25, M30, M35, M35HD 20 (100 series: 103-06, 103-09, 103-10)

145016941

JPR - VP0010DB

€ 358

Perkins

M92, M115Ti, M130C, M135, M185C, M215C, M225Ti, 370Ti, 1004, 1006

34449 (old part no. 33004)

JPR - CT3054

€ 806

Scania

D8, D9, DN9, DS9, DI11, DI12, DI13 and DI16 series

1785018

JPR - SC50IF

€ 1.155

Scania

D13 Genset

JPR - SC50IF2

Auf Anfr

Scania

D9, DI12, DI13, DI16 SERIES KEEL COOLING APPLICATION

1934597

JPR - SC5000B

Teile lieferbar

JPR-VP0010DB

JPR-CT3054

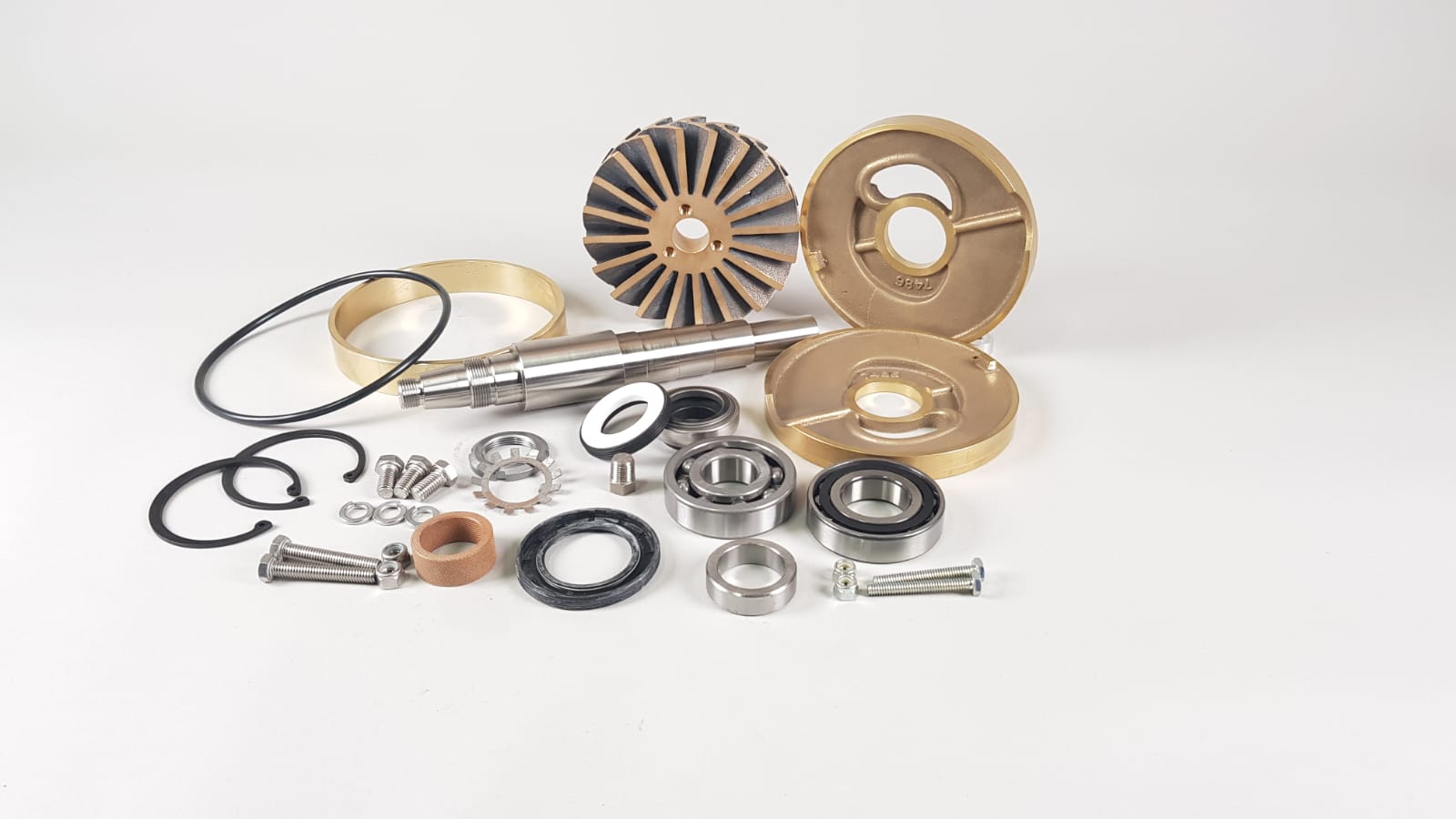

JPR-SC50IF Teile für Scania-Pumpe mit Kielkühlung

Vetus

M2.05 / M2.06 / M2D5 / M3.09 / M3.28 / M4.15 / M4.17

STM6109

JPR - VT08IH

€ 204

Vetus

VH4.65, VH4.80

STM4522

JPR - VT10LH

€ 255

Vetus

C4, CT4, C6, CT6

CT30195

JPR - C1025

€ 509

VIKOMA International

JPR - VK2000

€ 780

VIKOMA International

JPR - VK3000

€ 899

JPR-VT08IH

JPR-VT10LH

JPR-C1025

JPR-CP25UH

JPR-VP2799G

Volvo Penta

V-6, V-8, 430A, 430B, 431A, 431B, BB231A, 500A, 500B, 501A, 501B, 570A, 571A, 572A, 740A, 740B, AQ200C, AQ200D, AQ200F, AQ211A, AQ225D, AQ225E, AQ225F, BB225A, BB225AV, BB225B, BB225C, AQ230B, AQ231A, AQ231B, BB231B, AQ255A, AQ255B, BB255AV, BB260A, BB260AV, BB260B, BB261A, AQ271A, AQ271B, AQ271C, AQ271D, AQ290A, AQ311A

855722, 856957, 857451

JPR - CP25UH

€ 216

Volvo Penta

4.3/5.0GL, 4.3/5.0/5.7GXi, 5.7Gi, V6-200/225, V8-225/270/300/320

21212799

JPR-VP2799G

€ 384

Volvo Penta

8.1Gi, 8.1IPS

21212800

JPR-VP2800G

€ 339

Volvo Penta

4.3/5.0/5.7GL, 4.3/5.0/5.7GS, 4.3/5.0Gi

21214596

JPR-VP4596G

€ 374

Volvo Penta

3.0GS, 4.3/5.0GL, 4.3/5.0Gi, 4.3/5.0GXi, 5.7GS, 5.7Gi

21214599

JPR-VP4599G

€ 374

Volvo Penta

8.1Gi, DPX375/420

21214601

JPR-VP4601G

€ 374

Volvo Penta

4.3/5.0/5.7GL, 4.3/5.0/5.7GS, 4.3/5.0Gi

21255090

JPR-VP5090

€ 374

JPR-VP2800G

JPR-VP4596G

JPR-VP4596G

JPR-VP4610G

JPR-VP5090G

JMP Impellerpumpen

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis €

Volvo Penta

D1-13A, D1-13B, D1-13F, D1-20A, D1-20B, D1-20F, MD2010A, MD2010B, MD2010C, MD2010D, MD2020A, MD2020B, MD2020C, MD2020D

3593654

JPR - VP0010DA

€ 368

Volvo Penta

D1-30A, D1-30B, D1-30F, D2-40A, D2-40B, D2-40F, MD2030A, MD2030B, MD2030C, MD2030D, MD2040A, MD2040B, MD2040C, MD2040D

3593655

JPR - VP0010DB

€ 358

Volvo Penta

D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-75A, D2-75B, D2-75C, D2-75F

3583089

JPR - VP0020D

€ 381

Volvo Penta

D3-110I-A, D3-110I-B, D3-110I-C, D3-130A-A, D3-130A-B, D3-130I-A, D3-130I-B, D3-130A-C, D3-130I-C, D3-160A-A, D3-160A-B, D3-160I-B, D3-160A-C, D3-160I-A, D3-160I-C, D3-190A-B, D3-190A,C, D3-190I-B, D3-190I-C

21141637 old no. 3884694

JPR - VP0030DA

€ 393

Volvo Penta

D3-110I-D, D3-110I-E, D3-110I-F, D3-140I-E, D3-140I-F, D3-140A-D, D3-140A-E, D3-140A-F, D3-150I-D, D3-150I-E, D3-150I-F, D3-170I-D, D3-170I-E, D3-170I-F, D3-170A-D, D3-170A-E, D3-170A-F, D3-200I-D, D3-200I-E, D3-200I-F, D3-200A-D, D3-200A-E, D3-200A-F, D3-220I-D, D3-220I-E, D3-220I-F, D3-220A-D, D3-220A-E, D3-220A-F

21379102

JPR - VP0030DB

€ 412

JPR-VP001DA

JPR-VP0010DB

JPR-VP0020D

JPR-VP0030DA

JPR-VP0030DB

JPR-VP0040DA

JPR-VP0040DB

JPR-VP0050D

Volvo Penta

D4-180I-B, D4-180I-C, D4-180I-D, D4-180I-E, D4-210A-A, D4-225A-B, D4-210I-A, D4-210I-B, D4-225I-B, D4-225A-C, D4-225A-D, D4-225I-C, D4-225I-D, D4-260A-A, D4-260A-B, D4-260A-C, D4-260A-D, D4-260D-B, D4-260D-C, D4-260D-D, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-300A-A, D4-300A-C, D4-300A-D, D4-300D-A, D4-300D-C, D4-300I-A, D4-300I-C, D4-300I-D, D4-225A-E, D4-225I-E, D4-260A-E, D4-260D-E, D4-260I-E, D4-300A-E, D4-300D-E, D4-300D-D, D4-300I-E

3584062

JPR - VP0040DA

€ 591

Volvo Penta

D4-225A-E, D4-260A-E, D4-260D-E, D4-300A-E, D4-300D-E

21419374

JPR - VP0040DB

€ 567

Volvo Penta

D5A-T, D5A-TA, D5A-BTA, D7A-T, D7A-TA, D7A-BTA, D7C-TA, D7C-BTA

3838288

JPR - VP0050D

€ 481

Volvo Penta

D6-300A-F, D6-300D-F (MC), D6-300I-F, D6-330A-F, D6-330D-F, D6-330I-F, D6-370A-F, D6-370D-F, D6-370I-F, D6-400A-F, D6-435D-F, D6-435I-SC-F, D6-435I-TC-F, D6-435I-WJ-F

21380890 (old no. 3589907)

JPR - VP0060DA

€ 549

Volvo Penta

D6-300A-F, D6-300D-F (MC), D6-300I-F, D6-330A-F, D6-330D-F, D6-330I-F, D6-370A-F, D6-370D-F, D6-370I-F, D6-400A-F, D6-435D-F, D6-435I-SC-F, D6-435I-TC-F, D6-435I-WJ-F

21419376

JPR - VP0060DB

€ 720

JPR-VP0060DB

JPR-VP0090D

JPR-VP0110DA

JPR-VP0110DB

JPR-VP0130D

Volvo Penta

D9A2A, D9-425, D9A2A, D9-500(R4), D9A2A, D9-575, D9A2B, D9-425, D9A2B, D9-500(R5), D9A2B, D9A-MH, D9A2B, D9A-575, D9A2B MH, D9A2C, D9A2D, D9A2E, D9A2F, D9A2G, D9A2H, D9A2J, D9A2K, D9A2A D9A-MG, D9A2A MG, D11A-A, D11A-B, D11A-C, D11A-D, D11A-C (IPS), D11A-D (IPS), D11A-E, D11A-E (IPS)

21380886 (old no. 3819485)

JPR - VP0090D

€ 1.277

Volvo Penta

D11B1-A MP, D11B2-A MP (IPS), D11A-A, D11A-B, D11A-C, D11A-D, D11A-C (IPS), D11A-D (IPS), D11A-E, D11A-E (IPS)

21219723

JPR - VP0110DA

€ 1.277

Volvo Penta

D11B1-A MP, D11B2-A MP (IPS)

22063494

JPR - VP0110DB

€ 1.225

Volvo Penta

D12D-A MH, D12D-B MH, D12D-C MH, D12C-A MP, D12D-A MP, D12D-B MP, D12D-C MP, D12D-D MP, D12D-E MP, D12D-F MP, D12D-G MP, D12D-H MP, D12D-C MH, D12D-E MH, D12D-G MH

3838207, 865295

JPR - VP0120D

€ 1.898

Volvo Penta

D13B-E/N MH, D13C1/2/3/4-A MP, D13B-A/B/C/D/G/H/J/K/L/M MP

3886848

JPR - VP0130D

€ 2.134

Volvo Penta

D16C-A MH, D16C-B MH, D16C-C MH

3589104

JPR - VP0160D

€ 1.390

Volvo Penta

AD31, AD41, MD31, KAD32P-A, KAD42A, KAD42B, KAMD42A, KAMD42B, TAMD42B, TAMD42WJ-A, KAD43P-A, KAMD43P, KAMD43P-A, KAD44P-A, KAD44P-B, KAD44P-C, KAMD44P-A, KAMD44P-C

3583115 (old no. 3581558, 860629)

JPR - V1000

€ 620

JPR-VP0160D

JPR-V1000

JPR-V2000

JPR-V3000

JPR-V5000

JMP Impellerpumpen

Motor Hersteller

Motortyp

Original-Pumpe Art.-Nr.

JMP-Pumpe Nr.

Preis

Volvo Penta

TAMD61, TAMD71, MD100, MD100A, TAMD102A, TAMD102D, TAMD103A, MD120, MD120A, TMD 100, TMD100A, TMD120 TMD120A, TMD121C, TMD122A, TAMD120, TAMD120A, TAMD121C, TAMD122A, TAMD122P

3829311 (old no. 846354)

JPR - V2000

€ 929

Volvo Penta

TAMD120A, TAMD122A, TAMD120B, TAMD122C, TAMD122D(3583112), TAMD122P (3829313)

3829312, 3829313

JPR - V3000

€ 1.154

Volvo Penta

TAMD162, TAMD163, TAMD165

3837935

JPR - V5000

€ 1.379

Volvo Penta

D25A-MT, D25A-MS, D30A-MT, D30A-MS

3835188

JPR - MD65LF

€ 1.589

Westerbeke

4.0BCD, 4.4BCD, 4.4WMD, 6.0BCD, 7.7WMD, 8.0WMD, 11.0WMD

WB37431, WB48080

JPR - WB08IP

€ 433

JPR-WB08IP

JPR-YM08IH

JPR-YM04JHB

JPR-YM04JHA

JPR-YM06LPA

Yanmar

2GM, 2GM20F, 3GM, 3GM30F, 2YM, 3YM

128397-42500

128377-42500

JPR - YM08IH

€ 238

Yanmar

4JH5E, 3JH4E, 4JH4E, 4JH4AE, 3JH5E, 4JH45, 4JH57, 4JH80, 4JH110

129271-42502

JPR - YM04JHB

€ 446

Yanmar

4JH3-THE, 4JH3-DTE, 4JH3E, 4JH3CE, 4JH3CE1, 4JH3-TE, 4JH3-TCE, 3JH3E, 3JH3E(EPA), 3JH3CE, 4JH3-TE-YEU, 4JH3-DTE(YEU), 3JH3E-YEU-E, 4JH4-TE, 4JH4-THE, 4JH4-HTE1

129670-42513

JPR - YM04JHA

€ 517

Yanmar

6LP(A)-DTE(P), 6LP(A)-STE(P), 6LPA-STP2

119773-42502

JPR - YM06LPA

€ 806

Yanmar

6LP(A)-DTZE(P), 6LP(A)-STZE(P), 6LPA-STZP2/3

119773-42652

JPR - YM06LPB

€ 548

Yanmar

6LY2-ST, 6LY2-STVY, 6LY2-WST, 6LY2-WDT, 6LY2-WDTZY, 6LY2M-WDT, 6LY2M-WST, 6LYA-STP, 6LYA-STE, 6LYA-UTE, 6LY2-STE, 6LY2A-STP, 6LY2A-UTP

119574-42502

JPR - YM06LY2

€ 1.018

Yanmar

6LY3-ETP, 6LY3-STP, 6LY3-UTP, 6LY3-STC, 6LY3-UTC, 6LY3-ETP 24, 6LY3-STP 24, 6LY3-UTP 24, 6LY3-STC

119578-42501

JPR - YM06LY3

€ 836

Yanmar

6SY-STP720, 8SY-STP900

165000-36440

JPR - SC50IF

€ 1.155

JPR-YM06LPB

JPR-YM06LY2

JPR-YM06LY3

JPR-SC50IF


Adresse

Ahlerhof 18
56112 Lahnstein

Kontakt

E-Mail: kpm@krahwinkel-kpm.de
Tel: +49(0)2621 40550
Fax: +49(0)2621 18398
