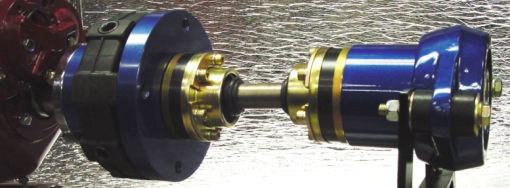

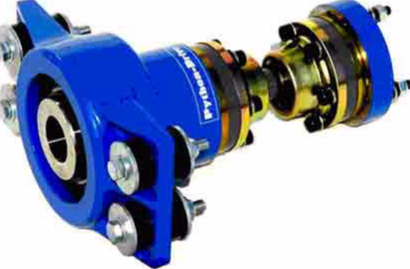

Python Drive

Python-Drive - the ideal vibration-free relation unit  - Makes your Yacht more quiet and vibration-free

The Python-Drive features:
● Large bearings and maintenance free thrust assembly
● Strong double Constant-Velocity drive shaft for high performance engines and heavy gearbox operations
● Internal clamp coupling or (upon request ) conical shaft connection

Advantages of the system are:
● Correct alignment of the gearbox to the prop shaft is no longer necessary
● Even with unequal angles the Constant-Velocity drive shaft guarantees a constant speed of the prop shaft and reduces wear of other parts of the drive line
● Propulsion thrust is absorbed by the silent rubber blocks

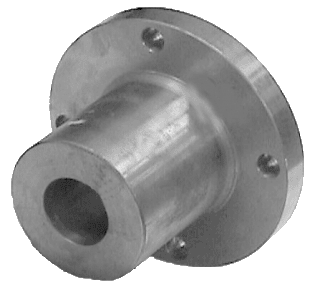

● Supplied complete with gearbox adaptor flanges to match most transmissions
● All necessary fittings and instruction manual provided
● The assembly is robustly constructed and will easily transmit the recommended engine power
● The thrust bearing units clamp onto the very end of the prop shaft, thus securing best possible alignment
● Very compact and space saving
● Available for shaft diameters from ¾” (19.05 mm.) up to ( 4”) 100 mm.
● Available for both imperial and metric shaft diameters and on special request also for conical shaft connections
● CV-drive shafts available for torques up to 1,500 Kgm. ( appr. 14.7 kNm ) also shafts with special lengths
● Thrust bearing units can be used as stand alone units and can be mounted on the exact spot one wishes
